What Is a Dieline in Packaging and Printing?
- Written by: Dauxin Team
- Last Updated: November 26, 2025
Table of Contents

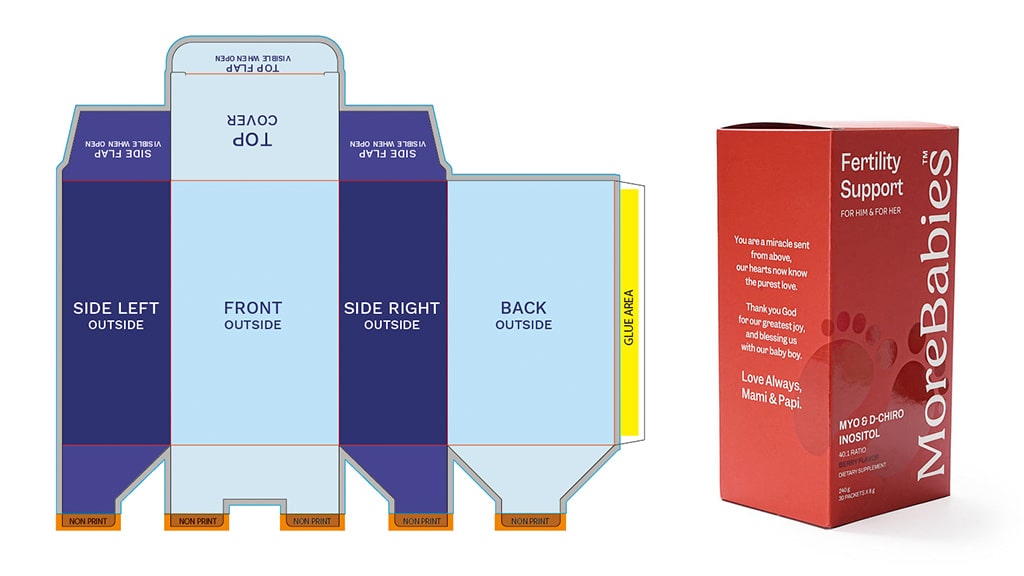

A dieline is the vector-based, 2D blueprint used in packaging and printing to ensure a product is cut, folded, and glued correctly. It serves as the template for the manufacturing die, marking specific lines for cuts, creases, perforations, and bleeds.
Without a proper dieline, your packaging artwork is just a pretty picture. If the dieline is wrong, the box won't close, the glue won't stick, and the product won't fit—leading to costly reprints and wasted materials.
In this guide, the packaging experts at Dauxin break down everything you need to know to get your packaging right the first time.
Why Are Dielines Crucial in Production?
When designing packaging, the dieline is the bridge between your creative artwork and the physical industrial machine. It is not just a drawing; it is a set of instructions for the die-cutting machine.
Precision Manufacturing: Dielines tell the die-cutting machine exactly where to strike. A variance of even 1mm can result in a box that bulges or tears.
Cost Efficiency: Catching errors on a digital dieline is free. Catching them after the die has been made or the paper has been printed costs thousands of dollars.
Universal Language: Designers, printers, and finishing vendors (die-cutters, folder-gluers) use the dieline as a shared reference point.
Quality Control: Tools like GlobalVision use dielines to digitally verify that artwork text hasn't drifted into a fold line or a cut zone.
Dieline Components: Understanding the Lines
To design an effective package, you must understand the "legend" of the map. Different lines tell the printer to perform different actions.
1. Cut / Trim Line (Black Line)
This is the path where the steel blade will cut through the material completely.
Visual Standard: Usually a solid line (often Spot Color Red or Magenta).
Rule: Keep all essential text at least 3mm away from this line.
2. Fold / Score Line (Red Line)
These are the lines where the machine will indent (crease) the material so it folds easily without cracking.
Visual Standard: Usually a dashed or dotted line (often Spot Color Blue).
3. Perforation Line
Used for tear-away strips or easy-open boxes (like tissue boxes or courier envelopes). The blade cuts dashes and leaves gaps, holding the material together until the user tears it.
4. Bleed Area (Blue Line)
The bleed is the printed artwork that extends beyond the cut line (typically 3–5mm).
Why it matters: If the cutting blade shifts slightly (mechanical tolerance), the bleed ensures you don't end up with an ugly white hairline on the edge of your box.
5. Glue Tabs / Flaps
These are the hidden areas where adhesive is applied to construct the 3D shape.
Pro Tip: Never put varnish or ink on a glue tab area, or the glue won't stick!
Types of Dielines: Real-World Examples
Different products require drastically different structures. Professionals often refer to the FEFCO International Case Code (the global standard for corrugated packaging styles) to identify these structures by number, such as "0427" for a mailer box.
Tuck Top Box (STE): The standard retail box for cosmetics and electronics. It tucks closed at the top and bottom.
Mailer Box (E-Flute): The "subscription box" style. Made of corrugated cardboard, it is self-locking and sturdy for shipping.
Rigid Box: A two-piece set (lid and tray) often used for luxury items like iPhones or jewelry.
Flexible Pouch: Flat or stand-up pouches used for coffee or snacks.
How to Create a Dieline in Adobe Illustrator (Step-by-Step)
While Photoshop is great for graphics, never create a dieline in Photoshop. Dielines must be vector paths. Here is the standard workflow:
Define Dimensions: Measure your product. Determine the Length (L) x Width (W) x Depth (D). Note: Always measure the inner dimensions for the product fit.
Set Up the Document: Open Illustrator. Use CMYK color mode. Create a new layer specifically named "DIELINE".
Draw the Structure:
Use the Pen Tool to draw the outline.
Set your stroke to 0.25pt or 0.5pt.
Create a Spot Color swatch named "Die Cut" (usually 100% Magenta) and apply it to cut lines.
Create a Spot Color swatch named "Crease" (usually 100% Cyan) and apply it to fold lines.
Add Locking Tabs & Glue Flaps: Ensure glue flaps are roughly 15-20mm wide depending on the box size.
Set Overprint: Crucial Step. Select all dieline strokes and go to
Attributes > Overprint Stroke. This ensures the line doesn't "knock out" the artwork behind it during printing.Add Bleed: Extend your background artwork 3mm past the cut lines.
Don't want to draw it from scratch? At Dauxin, we can generate custom structural dielines for your specific product size.
Common Mistakes & Manufacturing Constraints
This is where design meets reality. Ignoring these factors leads to production failure.
1. Ignoring Material Thickness (The #1 Error)
Paper has volume. If you fold a thick corrugated board (E-flute or B-flute), the fold takes up space.
The Fix: You must apply allowance (deductions or additions) to the panels. For example, the outer dust flaps often need to be slightly smaller than the inner flaps to prevent them from colliding when the box closes.
2. Artwork on Glue Areas
If you print ink over a glue tab, the glue adheres to the ink, not the paper. The box will fall apart.
The Fix: Mark glue areas clearly as "Free of Ink/Varnish."
3. Missing "Safe Zones"
Placing a logo 1mm from the edge looks great on screen, but if the cutter shifts, your logo gets chopped.
The Fix: Keep a 3mm safety margin inside the cut line.
4. Flattening Layers
Sending a flat JPEG to a printer is a nightmare.
The Fix: Always send a layered PDF or AI file. Keep the "Dieline" layer separate from the "Artwork" layer.
Dieline Checklist: Before You Send to Print
Run through this 10-point checklist to ensure your file is production-ready:
[1] Is the file mode CMYK (not RGB)?
[2] Is the Dieline on a separate layer named "DIELINE"?
[3] Is the Dieline set to "Overprint Stroke"?
[4] Are Spot Colors used for Cut (Red) and Fold (Blue) lines?
[5] Is there at least 3mm of bleed?
[6] Are images 300 DPI or higher?
[7] Are fonts outlined (or font files provided)?
[8] Are glue tabs free of ink/varnish?
[9] Have you accounted for material thickness?
[10] Have you made a physical mockup? (Always print, cut, and fold a paper prototype before mass production).
Frequently Asked Questions (FAQs)
It is highly discouraged. Manufacturers need vector paths (lines) to drive their CNC cutters. Photoshop creates raster images (pixels), which cannot be read by cutting machines. Use Illustrator, CorelDraw, or specialized CAD software.
A dieline is the flat technical blueprint for manufacturing. A mockup is a 3D visual representation of what the box looks like folded up.
Yes. Most professional printers (like Dauxin) prefer to create the structural dieline for you to ensure it fits their specific machinery. You then simply apply your artwork to their template.
Dielines are the foundation of packaging success. If you are unsure about material thickness, bleed, or structural integrity, let the experts handle it.
At Dauxin, we bridge the gap between design and manufacturing. Contact Us for a Quote or Request a Custom Dieline Template today.
